Remote IO Controllers

Explore our range of remote io controllers designed for industrial IoT applications with reliability and performance in mind.

All Products
Modbus Gateways
Remote IO Controllers
4G/5G Products
LoRa/ZigBee Devices
WiFi Solutions
Optical Fiber
Wireless Bus Bar Solutions
Switch/HUB

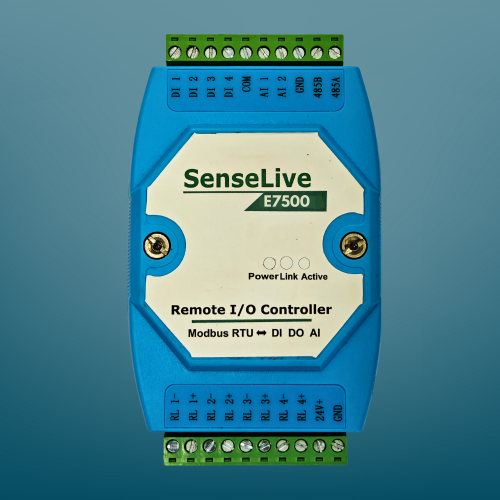

SenseLive E7500

SenseLive E7500

RS485-based Remote IO Controller

  • 4 Digital Inputs
  • 2 Analog Inputs
  • 4 Relay Outputs
View details

Technical Specifications

Serial Interface1 x RS-485 (Terminal Block)
ProtocolsModbus RTU
Baud Rate2400 - 115200 bps
Digital Inputs4 x Opto-isolated
Digital OutputRelay Output
Analog Inputs2 x Configurable AI
Full Datasheet

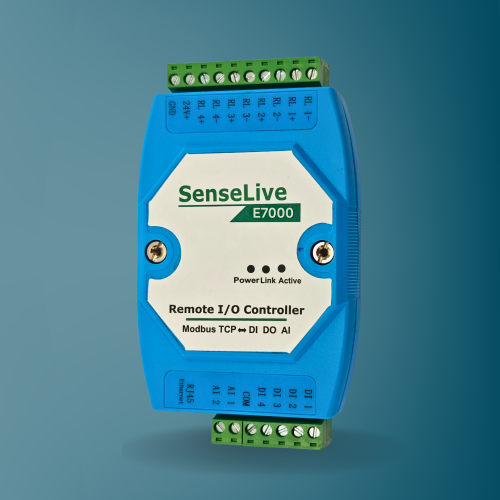

SenseLive E7000

SenseLive E7000

Ethernet-based Remote I/O Controller

  • 4 Digital Inputs
  • 2 Analog Inputs
  • 4 Relay Outputs
View details

Technical Specifications

Network Interface10/100 Mbps Ethernet (RJ45)
ProtocolsModbus TCP/UDP
Digital Inputs4 x Opto-isolated (Dry/Wet)
Analog Inputs2 x (0-10V / 4-20mA / 0-10KΩ)
Relay Outputs4 x Form-C (5A @ 250V)
Power Supply24V DC (9-24V Range)
Full Datasheet

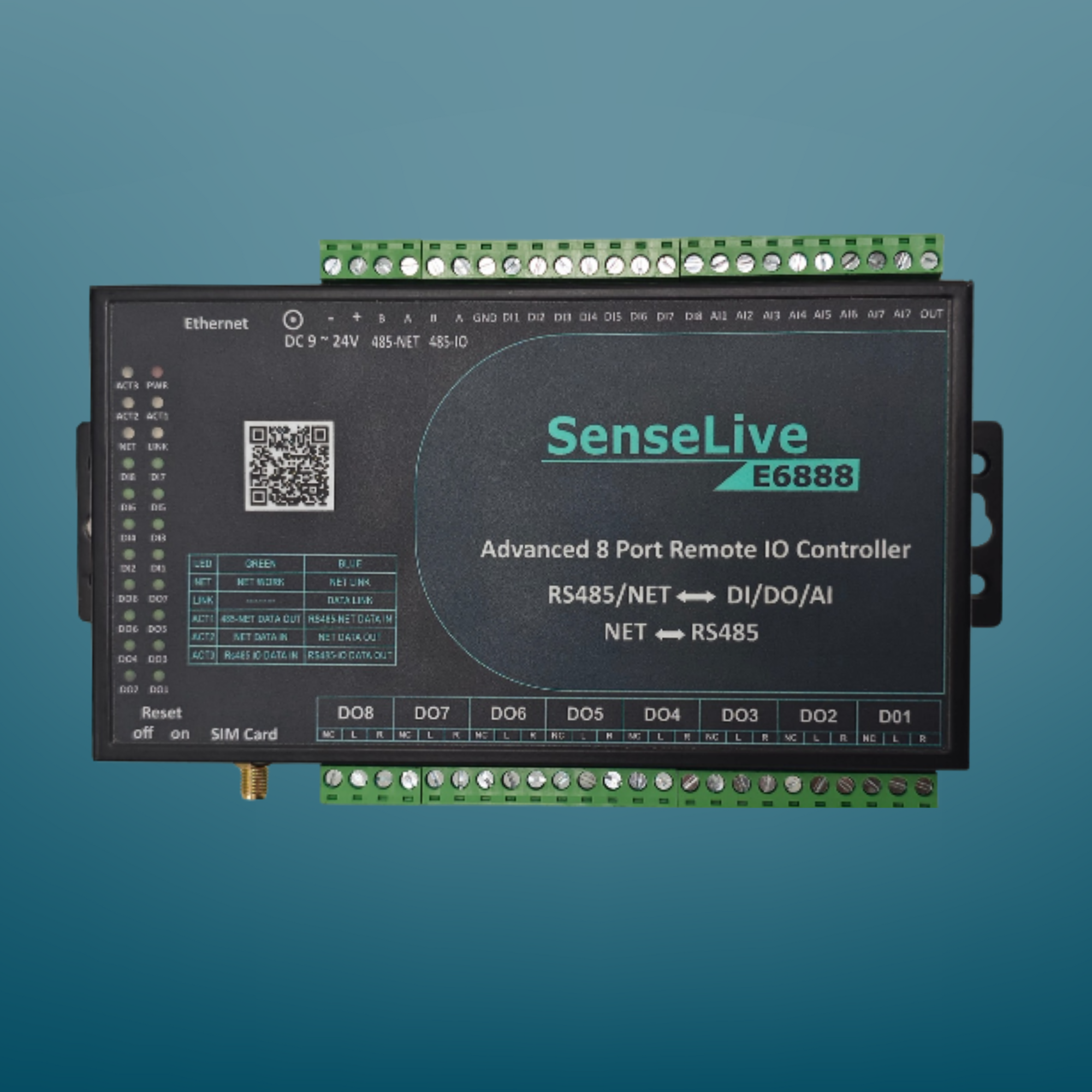

SenseLive E6888

SenseLive E6888

8 Channels DI/DO/AI Remote IO Controller

  • 8 Digital Inputs
  • 8 Analog Inputs
  • 8 Digital Outputs
View details

Technical Specifications

Serial Interface1 x RS-485
Network Interface4G, Optional(WiFi/Ethernet)
Digital Channels8 DI (Dry/Wet) + 8 Relay DO
Analog Inputs8 x (4 x 0-5V + 4 x 4-20mA)
ProtocolsModbus RTU, Optional(Modbus TCP)
Power SupplyDC 24V / 1A
Full Datasheet
SenseLive E7010D

SenseLive E7010D

4 channel IO Controller

  • 4 Digital Inputs
  • 4 Digital Outputs
  • Modbus RTU-to-json conversion
View details

Technical Specifications

Serial Interface1 x RS-485
Network Interface4G, Optional(WiFi/Ethernet)
ProtocolsMQTT, JSON, HTTP, TCP/UDP
Digital Channels4 DI + 4 DO
Power Supply9-24V DC (200mA @ 12V)
Operating Temperature-40°C to +85°C
Full Datasheet
SenseLive E7010A

SenseLive E7010A

4 channel IO Controller

  • 4-channel AI input
  • 4-channel AO output
  • current output 4-20mA
View details

Technical Specifications

Serial Interface1 x RS-485
Network Interface10/100M Ethernet (RJ45)
Analog Channels4 AI Input + 4 AO Output
ProtocolsModbus RTU, Modbus TCP
Accuracy16-bit ADC/DAC High Precision
Power Supply9-24V DC
Full Datasheet
