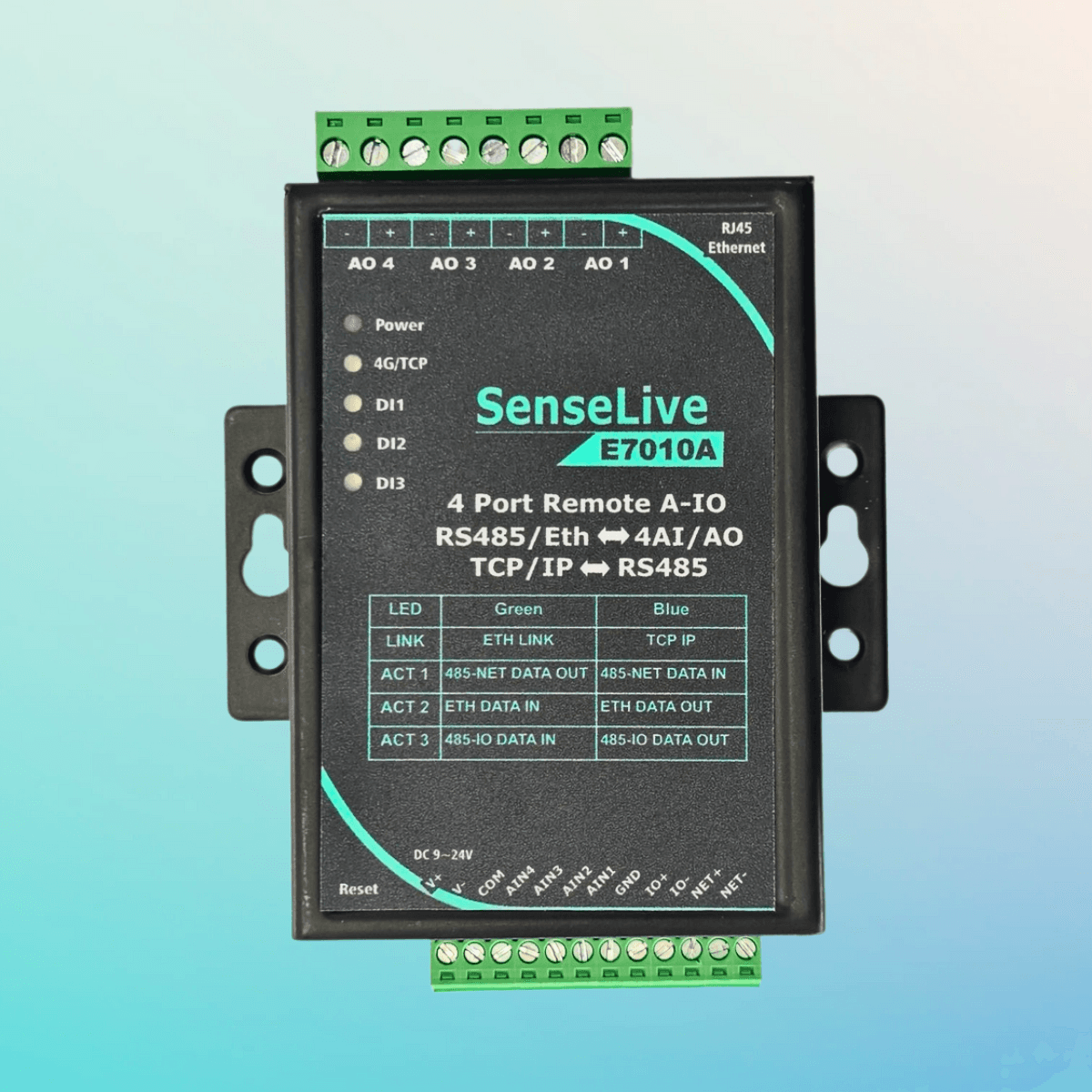

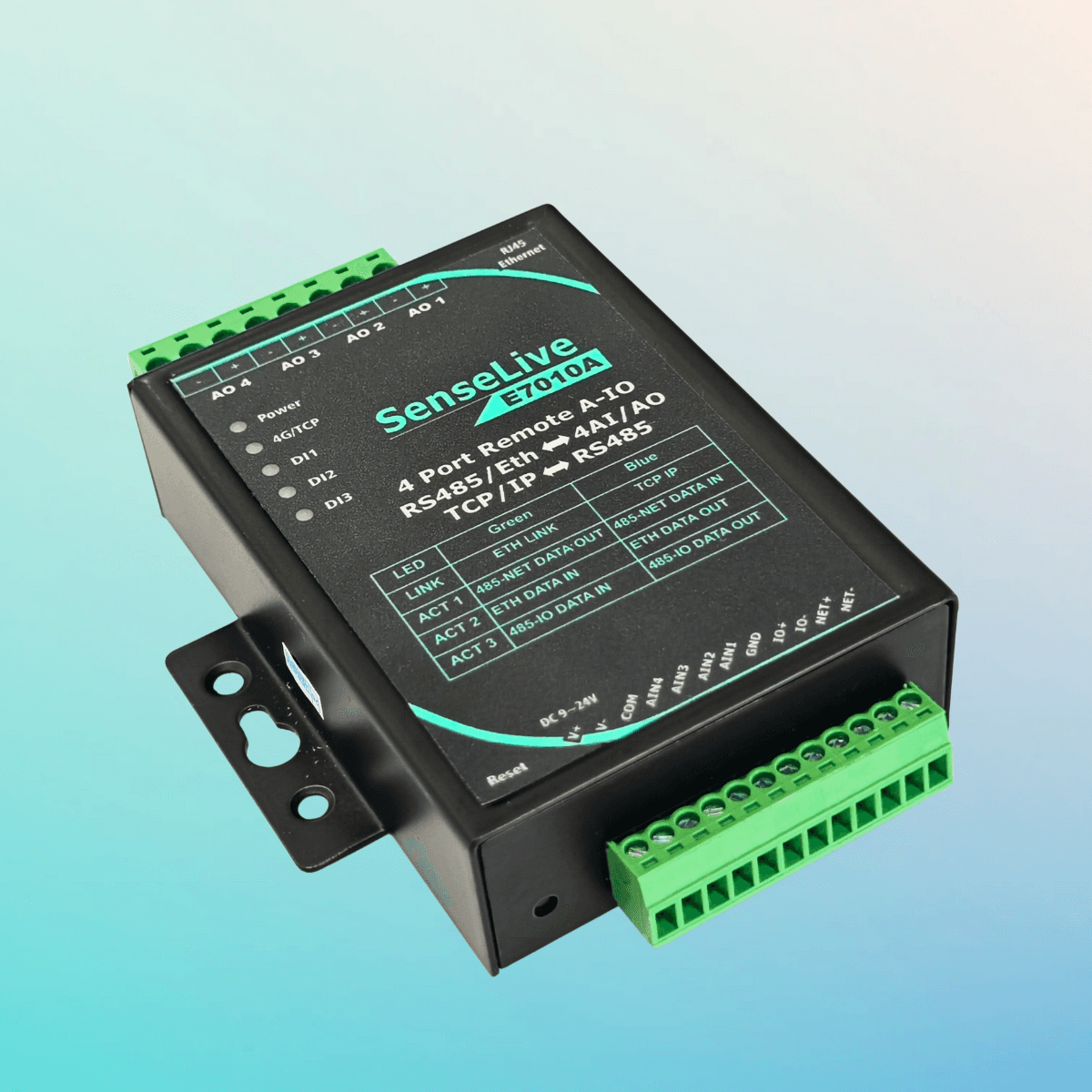

SenseLive E7010A
Remote IO Controller
Short Description
The E7510A series is a compact, cost-effective industrial gateway supporting flexible AI/AO and DI/DO combinations. It offers stable 16-bit analog signal acquisition and output, with options for 4–20 mA, 0–5 V, 0–10 V, and resistance inputs (factory-set). Models support RS485 or Ethernet communication for reliable field I/O monitoring and control. Custom channel combinations (0–4 AI/AO) are available on request.
Key Features
- 4-channel DI and 4-channel DO with 16-bit ADC/DAC precision
- Serial communication (1200–115200 bps) with multiple parity modes
- Ethernet model supports RS485 slave devices via 485-ETH
- Modbus protocol with RTU-to-JSON conversion
Product Overview
The E7010A series is a versatile industrial gateway designed for robust data acquisition and control. It supports up to 4 AI (Analog Input) and 4 AO (Analog Output) channels with high-precision 16-bit ADC/DAC, providing accurate and stable signal processing in demanding industrial environments.
Communication options include RS485 serial and Ethernet, enabling seamless integration with field devices and third-party 485 slave devices. The Ethernet-enabled model allows remote configuration and data access for industrial automation and monitoring systems.
The device supports Modbus protocol and RTU-to-JSON conversion, along with built-in edge computing capabilities such as alarms, data scaling, change upload, and offline alerts. This makes the E7010A ideal for SCADA, IoT-based monitoring, and real-time data acquisition applications.
Why Choose SenseLive E7010A
Flexible DI / DO Configuration
Supports up to 4-channel DI input and 4-channel DO output with stable 16-bit precision.
Advanced Communication Support
RS485 communication from 1200–115200 bps with multiple parity modes, plus Ethernet option for 485–ETH bridging.
Modbus & Protocol Conversion
Supports Modbus RTU, MB protocol, and RTU-to-JSON conversion for seamless integration.
Built-in Edge Computing
Includes alarms, data scaling, change-based upload, and offline alert capabilities.
Easy Remote Management
Supports network configuration, parameter updates, and remote device management.
