Home ProductsSwitch

Industrial Grade Switch

Connect your devices with high reliability using our range of industrial-grade Ethernet switches and RS485 hubs.

Modbus Gateways

Remote IO Controllers

LoRa/ZigBee Devices

Wireless Bus Bar Solutions

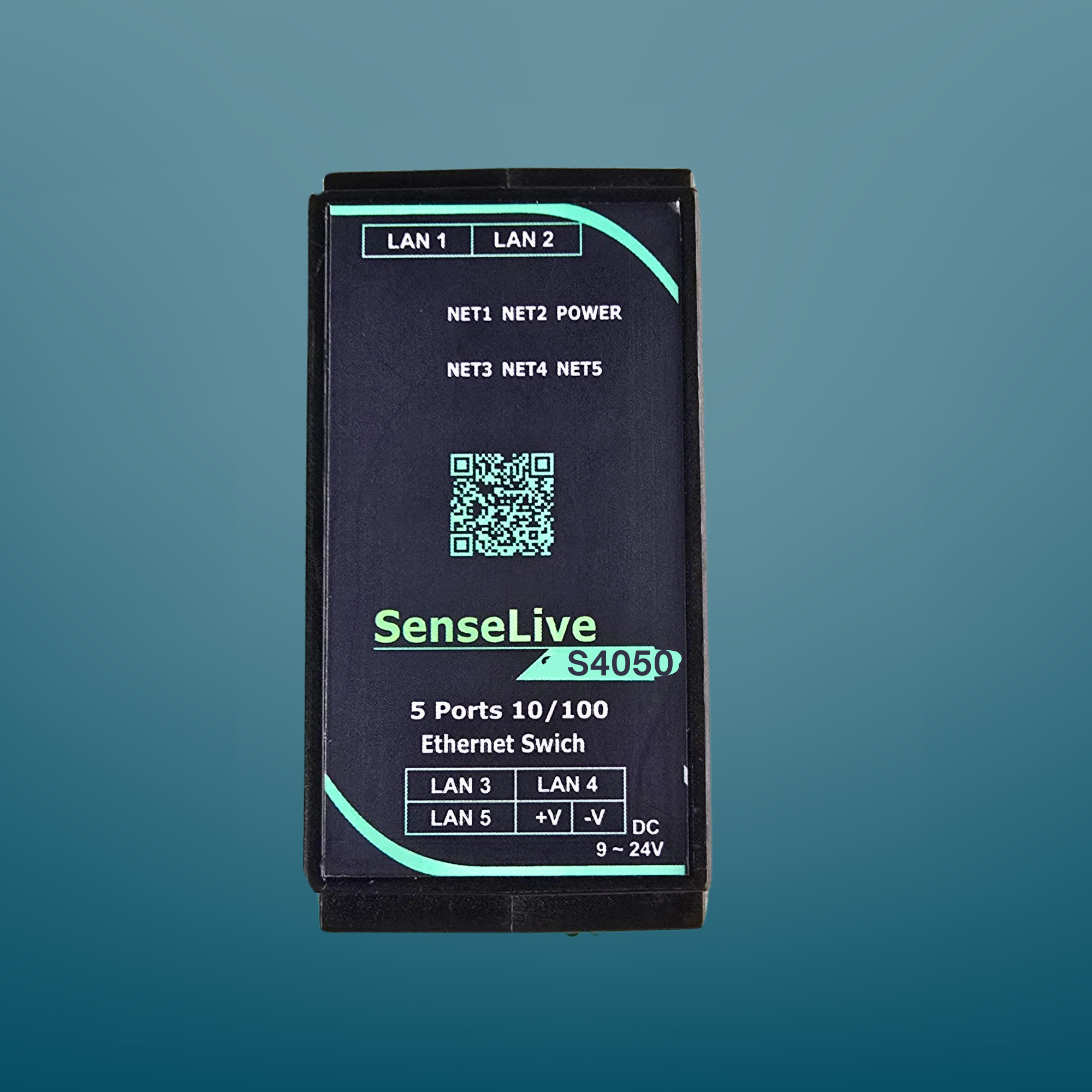

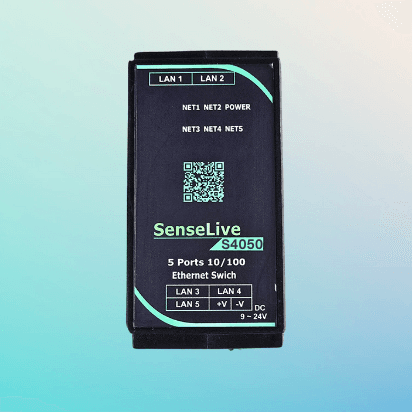

SenseLive S4050

SenseLive S4050

Industrial grade switch

5-port 10/100M adaptive Ethernet
Compact rail-mounted
Wide 9–24V DC power input

Technical Specifications

Standard	IEEE 802.3, 802.3u, 802.3x
Ports	5 x RJ45 (Auto MDI/MDIX)
Cache Space	448K Buffer
Transmit	Store and Forward
Heat Limit	Shell rated to 110°C
Isolation	EMC Static & Surge Protection

SenseLive 2M1S

SenseLive 2M1S

RS485 HUB

9–24V DC wide power input
Conflict-free communications
Supports high baud rates

Technical Specifications

Ports	RS485
Modes	2-Master-1-Slave
Conflict Res.	Internal Cache Arbitration
Data Bits	8 bits (fixed)
Baud Rate	1200 ~ 460800 bps
Isolation	Photoelectric Port Isolation

SenseLive S485H

SenseLive S485H

8-Channel RS485 Isolated HUB

8 RS485 Slave Ports with 1 Master Port
Opto-Isolated for High Reliability
MODBUS RTU/TCP Support

Technical Specifications

Serial Interface	1 x RS485 Master; 8 x RS485 Slaves
Baud Rate	Up to 460800 bps
Isolation	2500V Voltage Isolation
Protocols	Transparent Half-Duplex
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-45°C to +85°C

SenseLive S2385H

SenseLive S2385H

4-Port Industrial Isolated RS485 Hub

1 Master to 4 RS485 slave ports
2500V isolation protection
Supports up to 256 nodes per port

Technical Specifications

Serial Interface	8 Channel RS485
Baud Rate	0~200 Kbps (Self-adaptive)
Isolation	2500V Photoelectric Isolation
Protection	RS485: 12KV Static Protection
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-45°C to +85°C

Need a Custom Solution?

Contact our sales team to discuss your specific requirements and how SenseLive solutions can help you implement a tailored IoT network.
