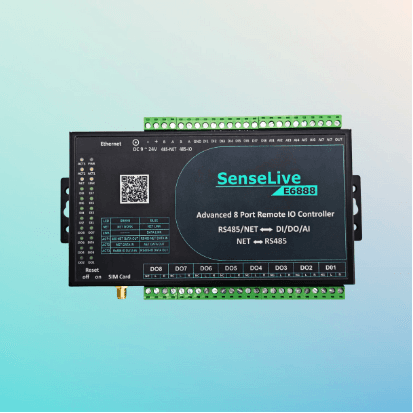

SenseLive E6888
8 Channels DI/DO/AI Remote IO Controller
Key Features
- 8 Digital Inputs
- 8 Analog Inputs (0-5V, 0-10V, 4-20mA, or 0-10kΩ)
- 8 Relay Outputs (o 0–5V, 0–10V, 4-20mA, 0–10kΩ)
- Protocol Support – RS485 commands & Modbus TCP for easy integration
Product Overview
The E6888 is an 8-channel remote I/O controller designed for versatile digital and analog input/output operations. It supports industrial automation tasks with robust performance and reliable connectivity.
It provides 8 digital inputs supporting dry or wet contacts with opto-isolation, 8 relay-based digital outputs capable of controlling up to 5A at 250VAC or 30VDC, and 8 analog inputs for comprehensive monitoring and control.
The first four analog input channels handle 0–5V voltage signals, while the last four support 4–20mA current signals with 10-bit accuracy, making the E6888 ideal for precision data acquisition in industrial environments.
Why Choose SenseLive E6888
Versatile I/O Options
8 digital inputs with dry/wet contact support and opto-isolation, 8 relay-based digital outputs, and 8 analog inputs for comprehensive monitoring and control.
High-Capacity Digital Outputs
Relay-type outputs capable of controlling up to 5A at 250VAC or 30VDC for industrial-grade applications.
Flexible Analog Input Options
4×0–5V voltage channels and 4×4–20mA current channels (customizable to 0–5V, 0–10V, 4–20mA, 0–10kΩ) with 10-bit accuracy.
Clear Status Indicators
Independent LEDs for each DI/DO channel for quick and easy status monitoring.
Built-In Demo Software
IO control and analog acquisition via RS485/TCP/IP for easy setup and testing.
