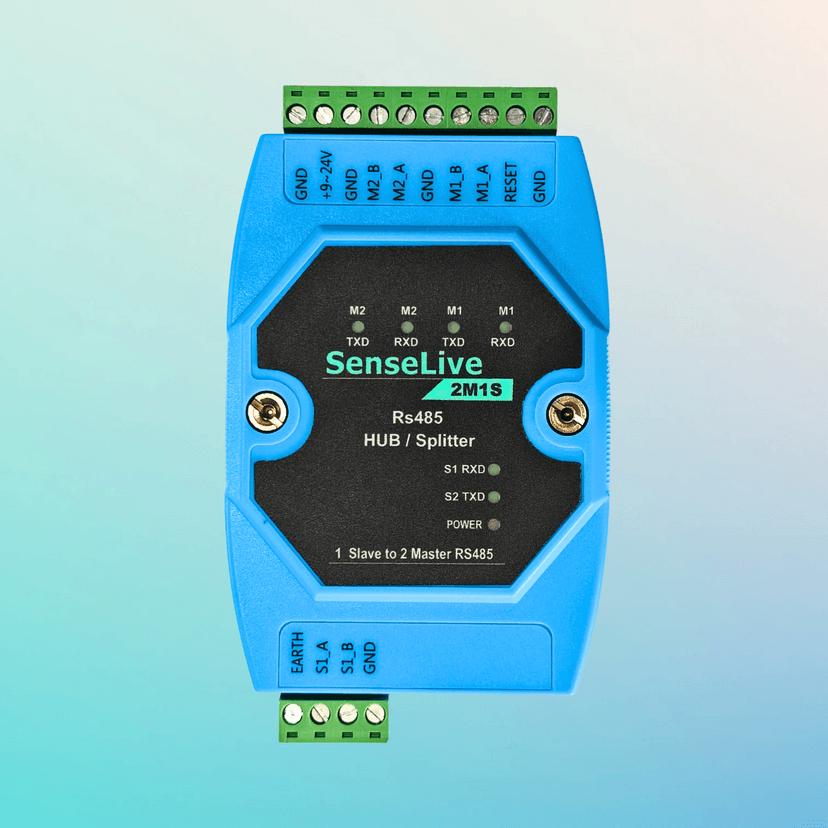

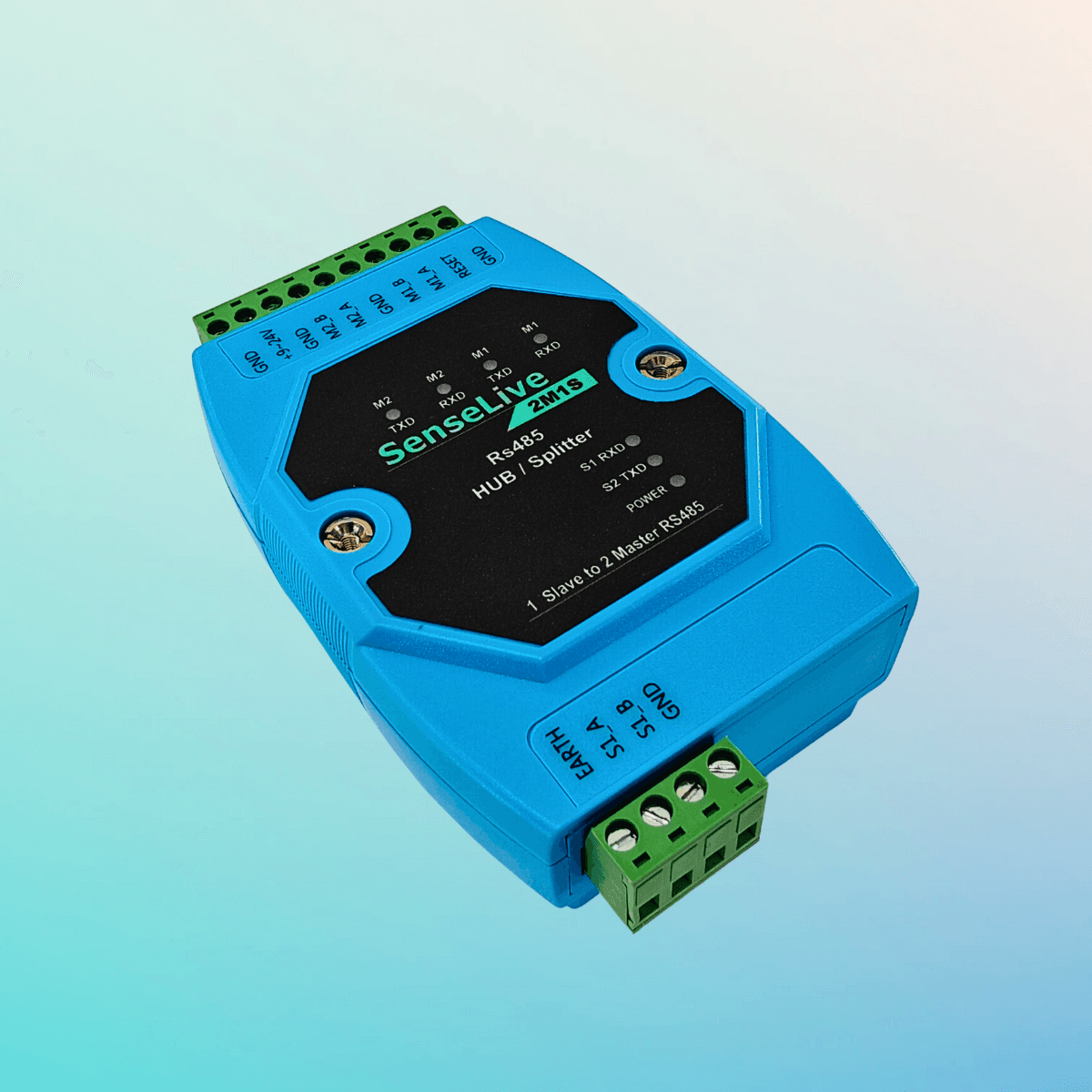

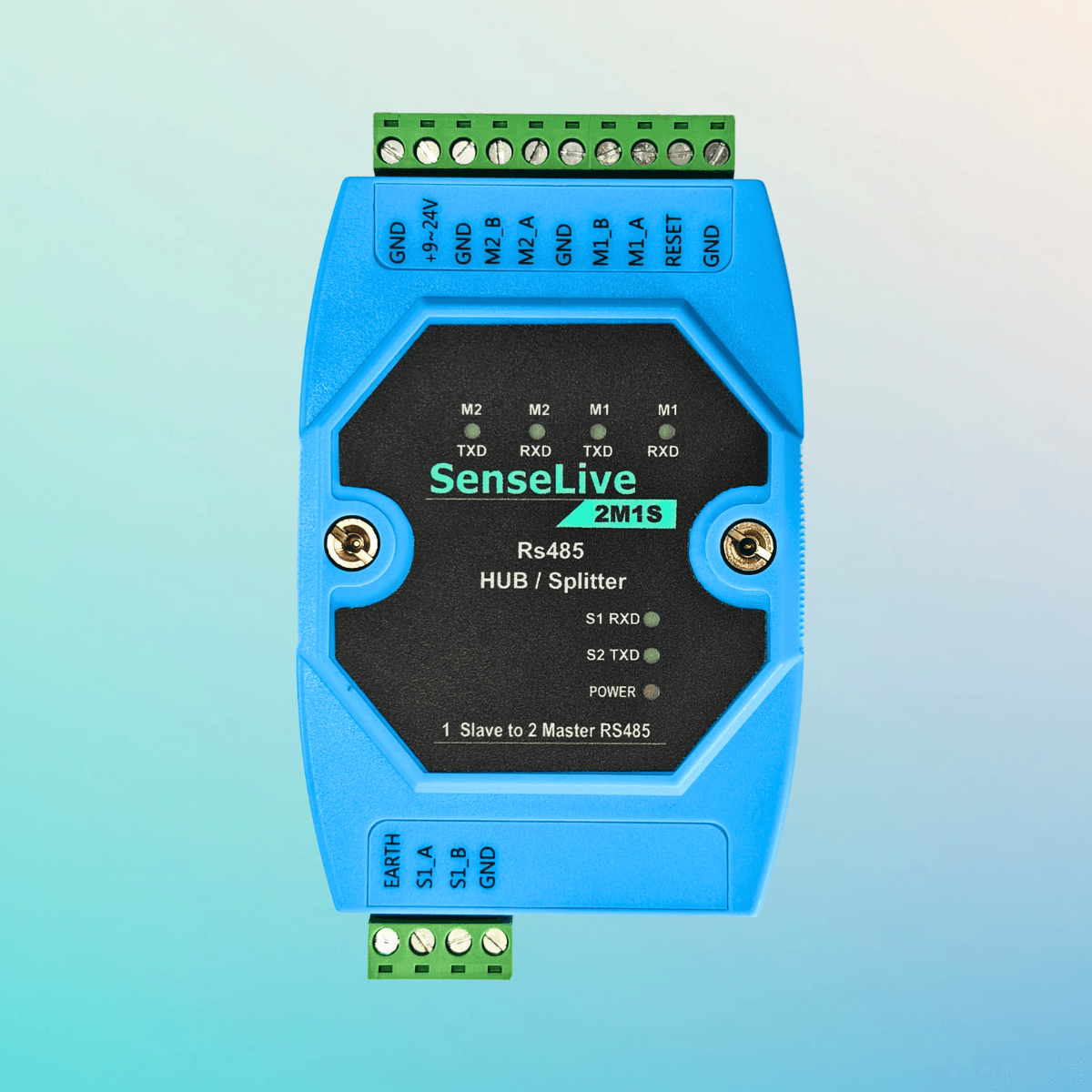

SenseLive 2M1S
Industrial Grade Switch
Short Description
An industrial-grade hub designed for seamless Two-Masters-One-Slave (2M1S) communication. It effectively prevents data collisions in RS485 networks, allowing multiple controllers to communicate with the same device, even when operating at different baud rates.
Key Features
- Enables two masters to share one slave device without data
- Integrated memory buffer ensures zero packet loss during simultaneous transmissions
- 3x RS485 ports, each supporting independent baud rate
- Intelligent routing based on specific device addresses.
- Rugged DIN-rail mount design supporting 9–24V DC power input
Product Overview
An industrial-grade hub designed for seamless Two-Masters-One-Slave (2M1S) communication. It effectively prevents data collisions in RS485 networks, allowing multiple controllers to communicate with the same device, even when operating at different baud rates
Complete Feature Set
communication
3 × RS485
Supported Modes
Two-Masters-One-Slave
Baud Rate
1200 – 460800 bpsOperating temperature
45℃~+85℃
Ambient humidity
less than 95%RH
Transmission medium
normal parallel lines or twisted-pair
Power and Network Status Indicators
LED indicators for easy monitoring of power and network status.
Flame-Retardant, Heat-Resistant Shell
Durable enclosure withstands up to 110℃ for enhanced safety.
Industrial-Grade Reliability
Wide operating temperature range for harsh environments.
