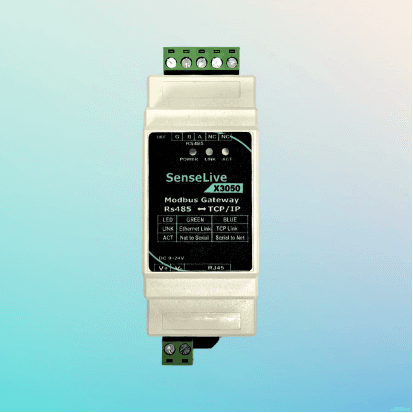

SenseLive X3050
Industrial RS485 to Ethernet Modbus Gateway
Compact Gateway
RS485 to Ethernet
IoT
Short Description
The X3050 is an ultra-compact industrial serial device server that provides seamless bidirectional communication between RS485 serial devices and Ethernet networks. It is designed for simple, reliable Modbus protocol conversion and cloud data reporting via MQTT.
Key Features
- Single RS485 Port
- 10/100M Auto-adaptive Ethernet
- Modbus TCP ↔ RTU Support
- MQTT & HTTP Client Support
- Ultra-Compact Form Factor
- Operating Temp: -40°C to +85°C
- Wide Power Input: 9–24V DC
- 35mm DIN-Rail Mounting
Compact Industrial Integration
The X3050 is engineered for space-constrained industrial environments. Its slim profile allows for high-density mounting in electrical cabinets, providing a reliable bridge between legacy serial equipment (like PLCs, energy meters, and sensors) and modern Ethernet-based management systems.
