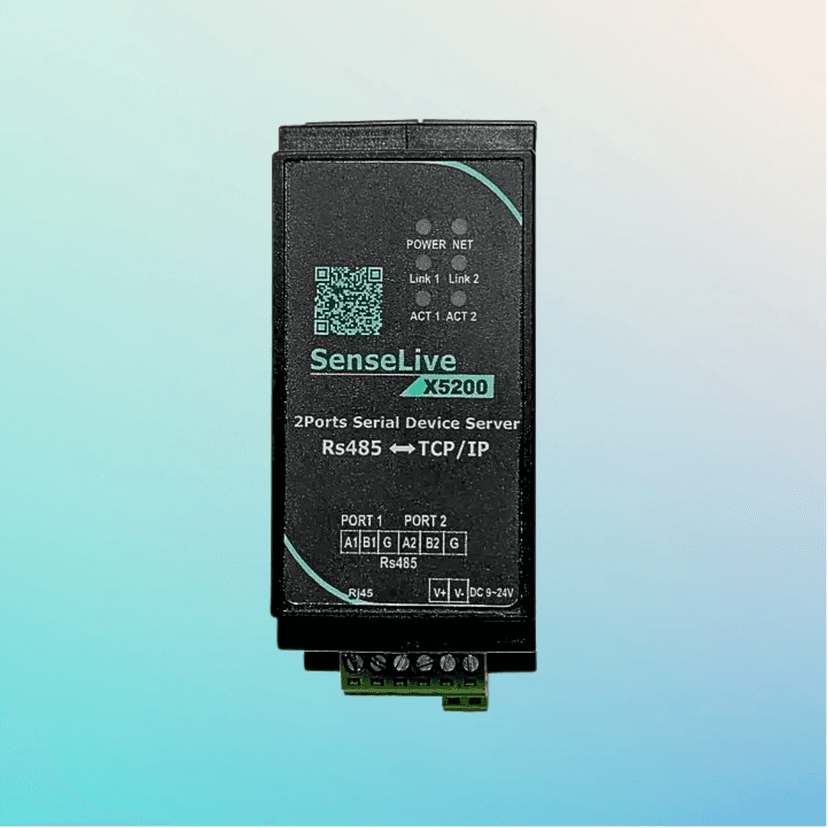

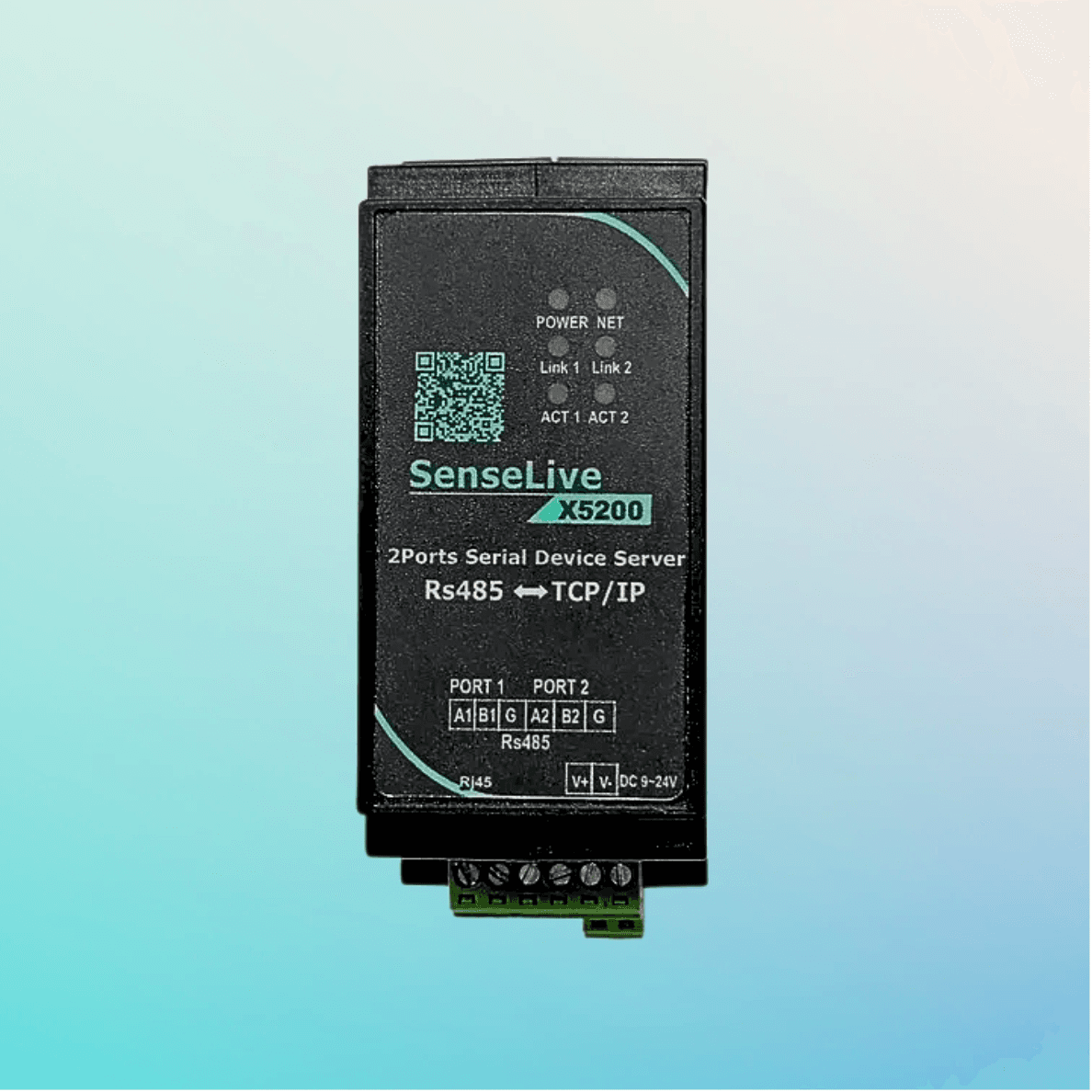

SenseLive X5200
RS485 to TCP/IP Modbus RTU to Modbus TCP
X5200 is an industrial RS485 serial server and IoT gateway with optocoupler isolation for interference protection. It features dual RS485 ports, Ethernet connectivity, 9–24V terminal power, and multiple installation options. Supports shared or dedicated IPs, 2 stop bits, 7-bit data, and baud rates up to 921.6 Kbps. Provides TCP/IP to RS485 conversion, virtual serial ports, Modbus RTU to TCP, MQTT, and DLT-645 to JSON conversion with scheduled uploads for reliable industrial data communication.
Key Features
- Dual RS485 Ports
- Modbus TCP ↔ RTU
- MQTT & JSON Gateway
- 10/100M Ethernet with 2KV surge protection
- DIN-Rail or Multi-mount
- Compact & Rugged (88×62×33 mm)
- Wide Operating Range: -40°C to +85°C, 95% RH
- Flexible Power: 9–24V DC
- Multi-mode: TCP Server/Client, UDP, Multicast
- Easy Configuration: VirCOM, Web, AT commands
Product Overview
X5200 is a compact industrial RS485 data collector and IoT gateway with dual RS485 ports and an Ethernet port. It supports Modbus TCP↔RTU, MQTT, JSON, and HTTP for cloud integration and remote data collection, offering high-temperature resistance, fire safety, and stable industrial performance.
Complete Feature Set
4 Independent RS485 Interfaces
Supports four RS485 interfaces with separate configurable baud rates for flexible connectivity.
Compact & Rugged Enclosure
Alloy flame-retardant plastic casing ensures durability and fire safety in industrial settings.
Ethernet Connectivity
RJ45 with auto cross-cable detection (MDI/MDIX) for easy network integration.
Wide Voltage Input
Operates on 9–24V DC with low power consumption for flexible deployment.
Multi-Protocol Support
Handles Modbus TCP/RTU, MQTT, JSON, HTTP, and RealCom protocols for seamless communication.
Multi-Client Capability
Supports TCP server with up to 30 connections and multiple client mode for scalable networking.
Advanced Software Features
Heartbeat packets, alarms, scaling, and data format conversion for enhanced management.
Industrial EMC Protection
High-temperature operation (-40°C to +85°C) with robust EMC and surge protection.

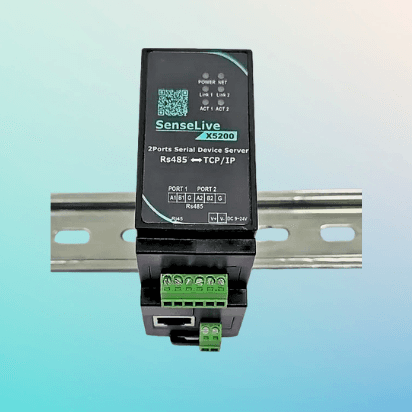

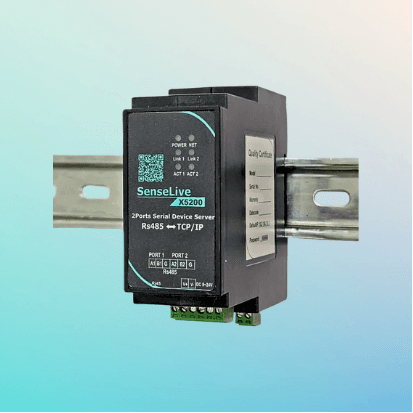

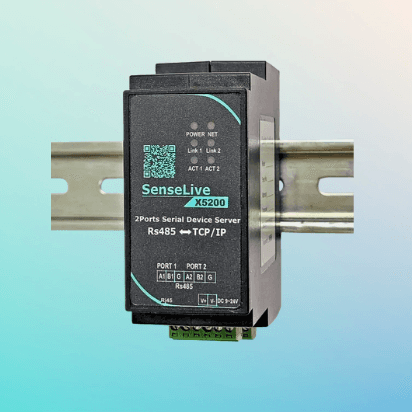

DIN-Rail Mounting
Quick 35 mm DIN-rail installation for easy deployment in control panels.
