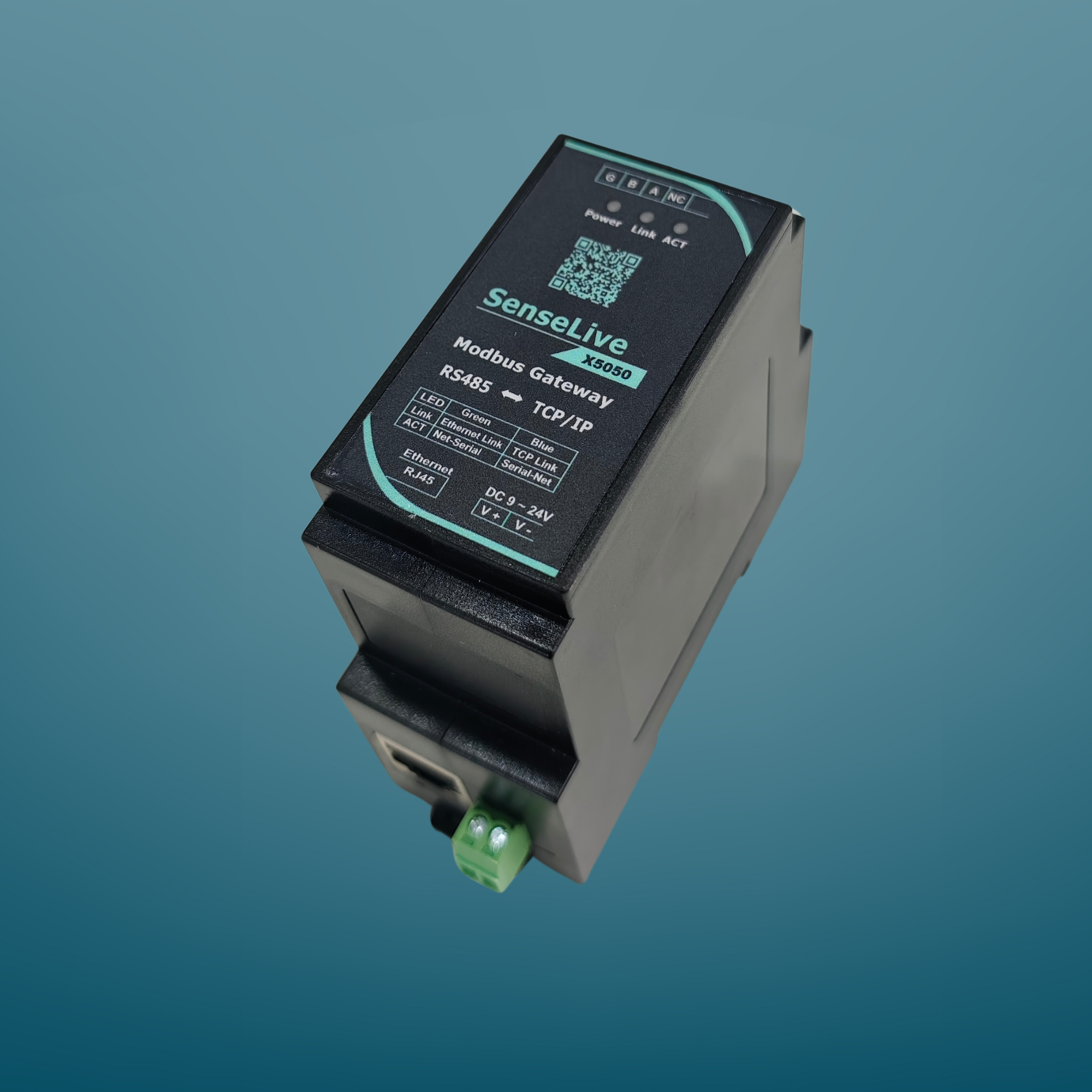

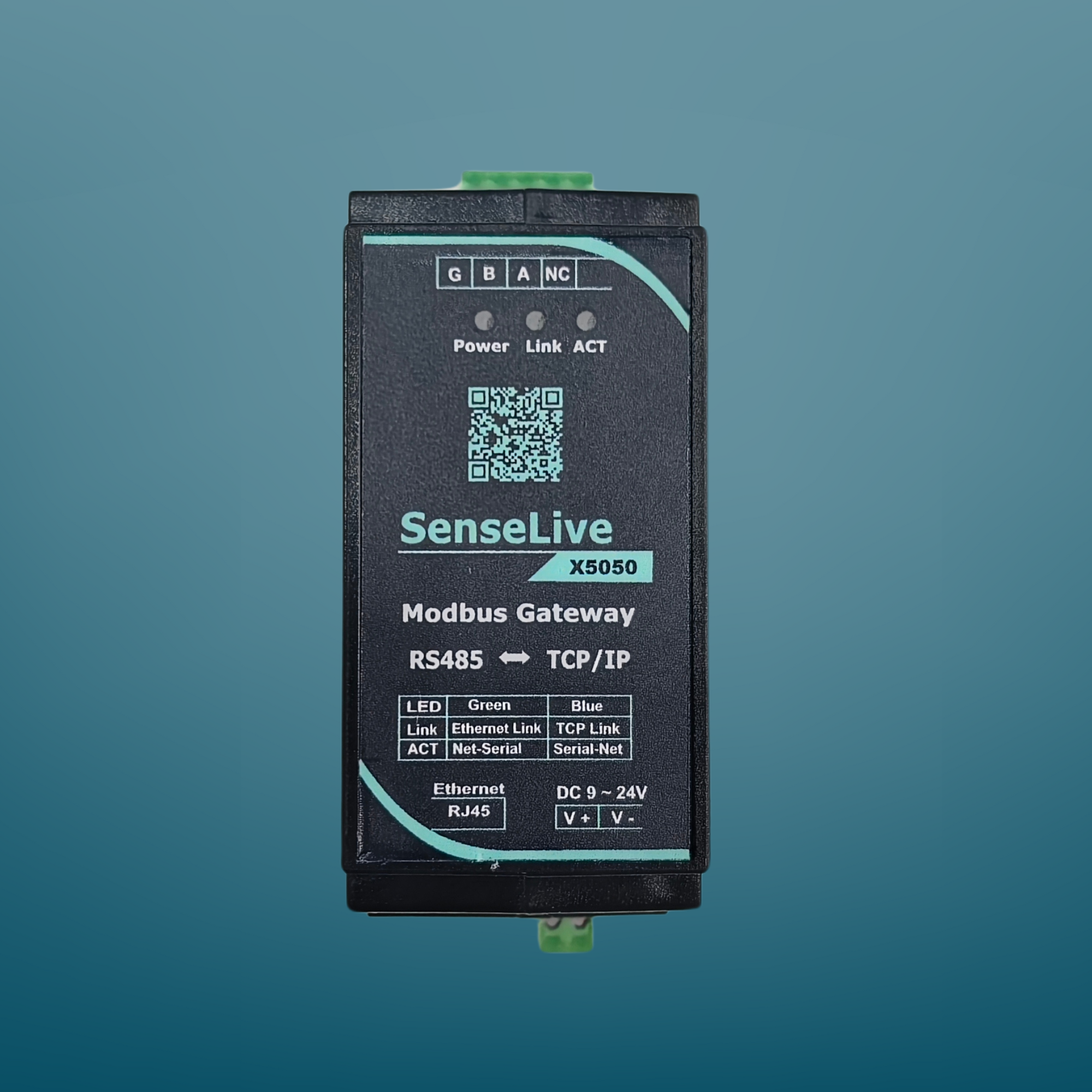

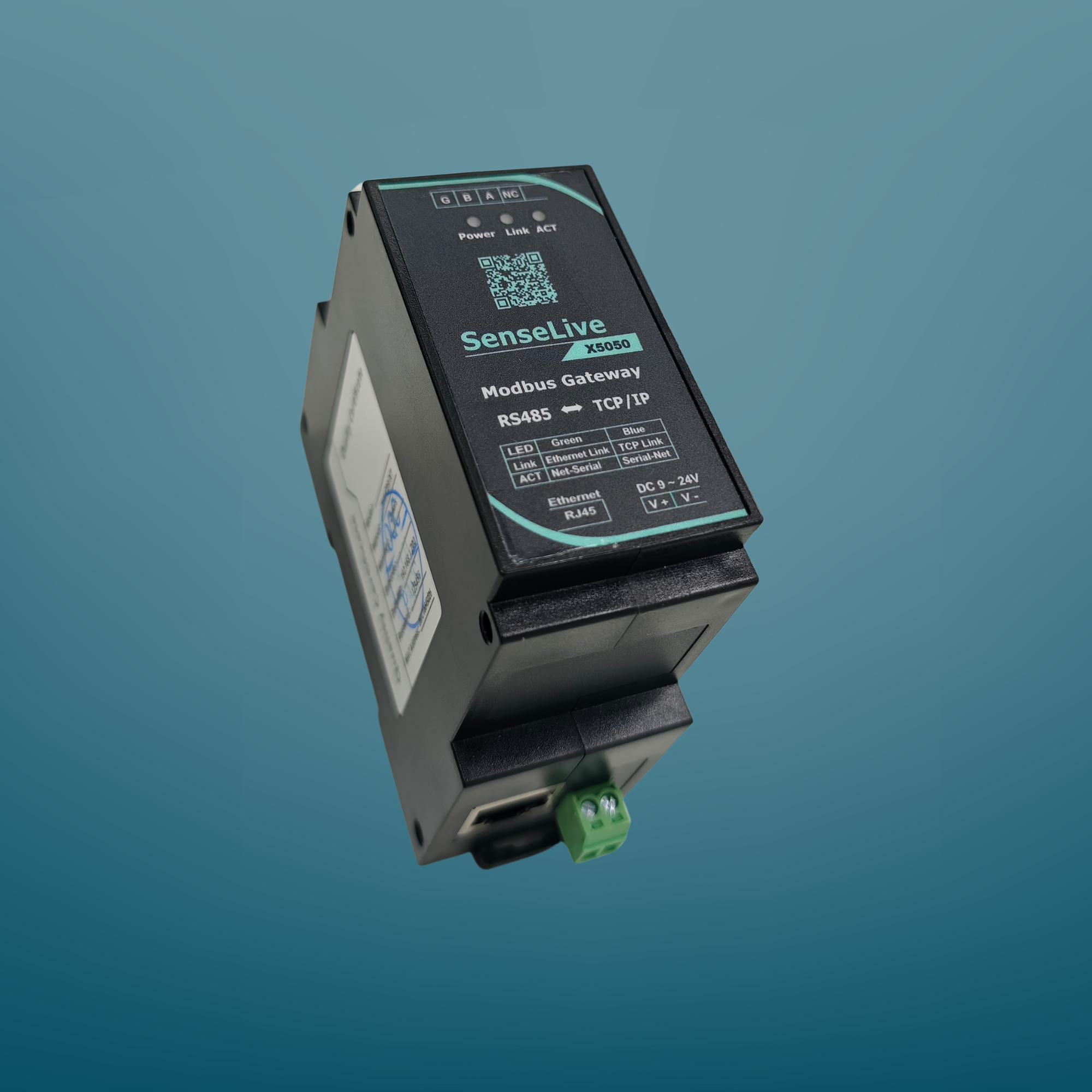

SenseLive X5050
RS485 to TCP/IP Modbus Server
The SenseLive X5050 is a high-performance industrial Modbus gateway that enables seamless communication between Modbus RTU devices and TCP/IP networks. With support for MQTT protocol, it's ideal for Industrial IoT applications requiring reliable data transmission.
Key Features
- Modbus TCP ↔ RTU Conversion
- MQTT Protocol Support

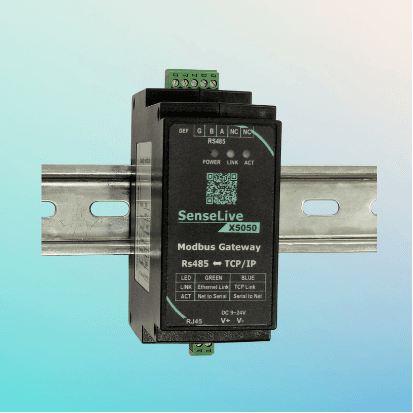

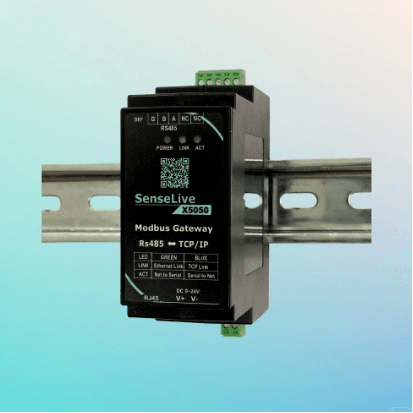

- DIN-Rail Mounting
- Industrial Temperature Range (-40°C to +85°C)
- 9-24V DC Power Supply
- Ethernet RJ45 Interface
- RS485 Serial Interface
- Status LED Indicators
- Web-Based Configuration
Features & Benefits
Dual Protocol Support
Supports both Modbus TCP and Modbus RTU protocols, enabling seamless integration between serial devices and Ethernet networks.
MQTT Connectivity
Built-in MQTT client for direct cloud connectivity, making it ideal for Industrial IoT applications.
Industrial Design
Rugged DIN-rail mount design with wide temperature range (-40°C to +85°C) for reliable operation in harsh industrial environments.
Easy Configuration
Web-based configuration interface allows for quick setup and parameter adjustment without specialized software.
Applications
Technical Specifications
| Communication | Modbus TCP, Modbus RTU, MQTT |
| Serial Interface | RS485 (2-wire) |
| Network Interface | 10/100 Mbps Ethernet (RJ45) |
| Power Supply | 9-24V DC |
| Power Consumption | < 2W |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 90 x 70 x 25 mm |
| Mounting | DIN-Rail |
| Certification | CE, FCC, RoHS |
