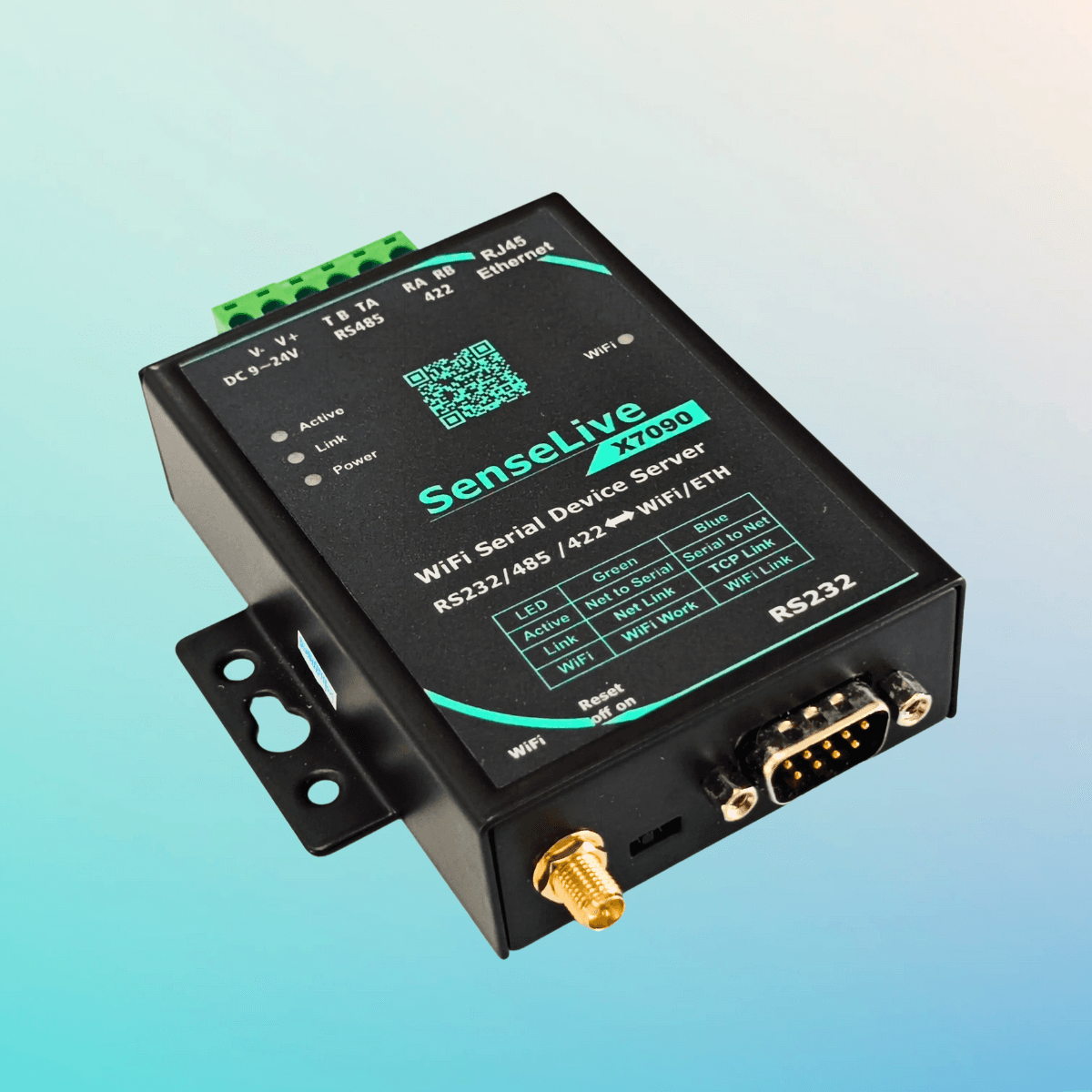

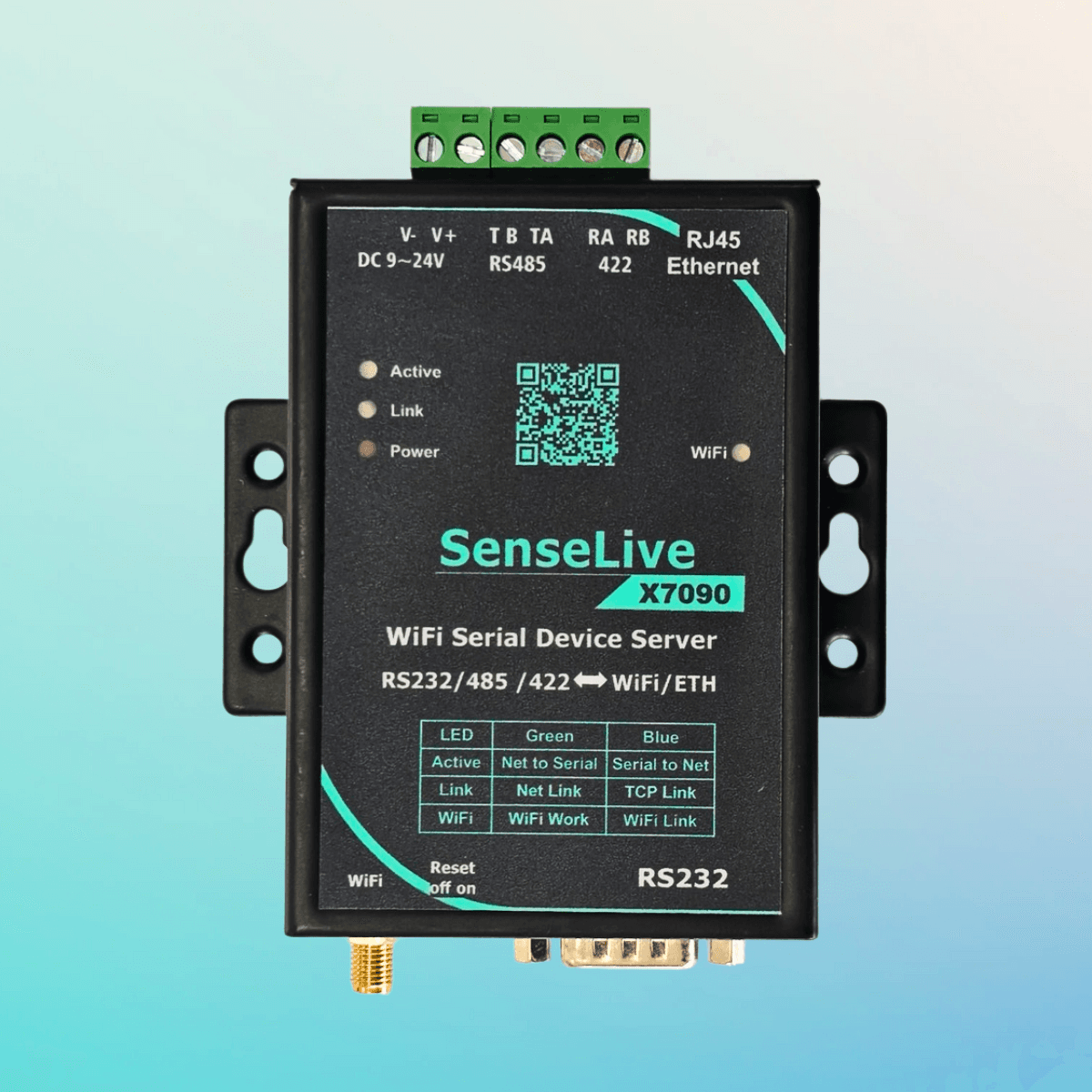

Senselive X7090
WiFi serial Device Server
Short Description
The X7090 is a high-performance WiFi serial device server, supporting simultaneous Ethernet and WiFi connections for flexible networking. Designed for industrial applications requiring high stability and real-time performance, it’s ideal for wireless remote monitoring such as PLC systems.
Key Features
- Supports Wi‑Fi 802.11 b/g/n standards for reliable wireless communication
- Wide input voltage range (9–24V) and industrial-grade operating temperature (–40℃ to 85℃)
- Robust RS485-to-Wi‑Fi conversion for legacy serial devices
- Flexible network modes: AP/STA, TCP server/client, and UDP support
- Advanced protocol conversion including Modbus TCP⇆RTU and MQTT/JSON for cloud connectivity
- Remote configuration, monitoring, and firmware upgrade capability
Product Overview
The SenseLive X7090 is a high-performance WiFi serial device server, supporting simultaneous Ethernet and WiFi connections for flexible networking. Designed for industrial applications requiring high stability and real-time performance, it’s ideal for wireless remote monitoring such as PLC systems.
Why Choose X7090
Maintenance-Free Operation
Self-powered design eliminates the need for battery replacement, reducing maintenance costs and downtime.
Ethernet & WiFi
Support simultaneous access.
Power Supply
9–24V wide range; supports industrial terminal or adapter input.
Real-Time Performance
Sticky packet optimization with 1–100 ms frame interval.
Network Support
DHCP Client/Server, DNS, TCP/UDP (up to 100 TCP connections).
