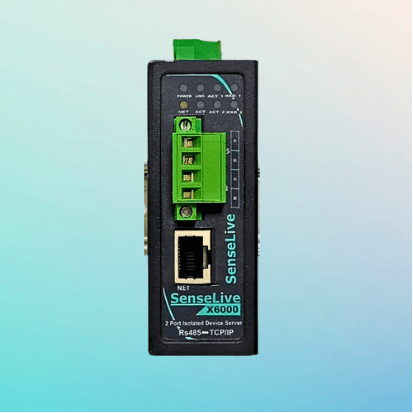

SenseLive X6000
2 Port Isolated Device Server Modbus RTU to Modbus TCP
X6000 is an industrial RS485 serial server and IoT gateway with optocoupler isolation for interference protection. It features dual RS485 ports, Ethernet connectivity, 9–24V terminal power, and multiple installation options. Supports shared or dedicated IPs, 2 stop bits, 7-bit data, and baud rates up to 921.6 Kbps. Provides TCP/IP to RS485 conversion, virtual serial ports, Modbus RTU to TCP, MQTT, and DLT-645 to JSON conversion with scheduled uploads for reliable industrial data communication.
Key Features
- Dual RS485 Ports
- Modbus TCP ↔ RTU
- MQTT & JSON Gateway
- 10/100M Ethernet with 2KV surge protection

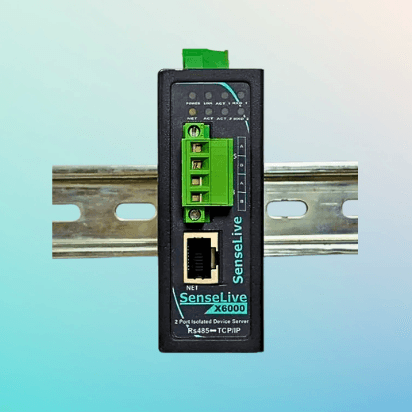

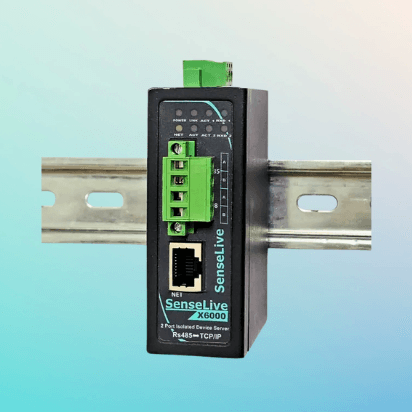

- DIN-Rail or Multi-mount
- Compact & Rugged (88×62×33 mm)
- Wide Operating Range: -40°C to +85°C, 95% RH
- Flexible Power: 9–24V DC
- Multi-mode: TCP Server/Client, UDP, Multicast
- Easy Configuration: VirCOM, Web, AT commands
Product Overview
The SenseLive X6000 is an industrial RS485 serial server/IoT gateway with dual RS485 ports and Ethernet connectivity. It supports Modbus RTU ↔ TCP, MQTT, and DLT-645-to-JSON conversion, offering reliable, interference-free communication for industrial automation and IoT applications.
Complete Feature Set
Dual RS485 Ports
Independent device communication via two RS485 ports for flexible deployment.
Industrial-grade Design
Optocoupler isolation and rugged construction ensure reliable operation in harsh environments.
Flexible Power
Wide input voltage range (9–24V DC) with terminal power support.
Ethernet Connectivity
10/100M Ethernet with 2 KV surge protection for secure and stable network connections.
High Baud Rate
Supports baud rates up to 921.6Kbps for high-speed data communication.
Multi-Protocol Support
Supports Modbus RTU/TCP, MQTT, JSON, and HTTP protocols for versatile communication.
Compact & Rugged
Small form factor (88×62×33 mm) with multi-mount options for versatile installation.
Wide Operating Range
Reliable operation across -40°C to +85°C and 5–95% RH conditions.
