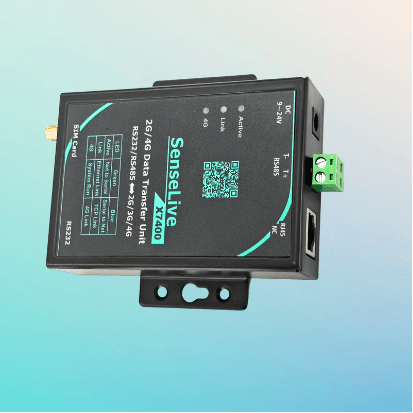

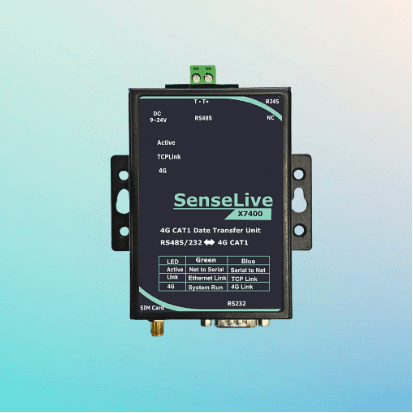

SenseLive X7450L
4G DTU – RS-232/RS-485 Serial to HTTP, MQTT & Modbus TCP Edge-to-Cloud Gateway
Key Features
- Multi-Network Support – FDD/TDD LTE & GSM (7-band all-netcom) for Global Mobile, Telecom.
- Flexible Protocols – TCP Server/Client, UDP; transparent serial pass-through; Modbus RTU ↔ Modbus TCP; MQTT/JSON; HTTP/JSON.
- Edge Intelligence – Threshold alarms, data translation & scaling, change-triggered uploads, offline alarms, local storage up to ~50 MB.
- Remote Management & FOTA – SenseLive Configuration Tool for LAN/Internet management; web UI for X7450L; secure firmware updates.
- Industrial-Grade Design – DC 9–24 V input; −45 °C to 85 °C operating; 0–95 % RH; flame-retardant metal housing with integrated wall-mount lugs (DIN-rail optional).
Product Overview
The SenseLive X7450L is a cost-effective, wall-mountable CAT-1 4G DTU providing RS-232/485-to-4G connectivity. The X7450L adds an Ethernet port, enabling 4G router functionality. Both models support edge computing, offline data buffering (dozens of megabytes), and offer full remote configuration and firmware-over-the-air update via SenseLive Configuration Tool or built-in web management (X7450L only).
Key Features
Multi-Network Support
FDD/TDD LTE & GSM (7-band all-netcom) for global mobile and telecom carriers.
Flexible Protocols
TCP Server/Client, UDP; transparent serial pass-through; Modbus RTU↔Modbus TCP; MQTT/JSON; HTTP/JSON.
Edge Intelligence
Threshold alarms, data translation & scaling, change-triggered uploads, offline alarms, local storage up to ~50 MB.
Remote Management & FOTA
SenseLive Configuration Tool for LAN/Internet management; web UI for X7450L; secure firmware updates.
Industrial-Grade Design
9–24 V DC input; −45 °C to 85 °C operation; 0–95 % RH; flame-retardant metal housing with integrated wall mounts (DIN-rail optional).
