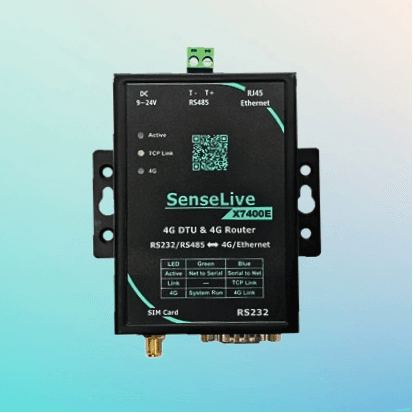

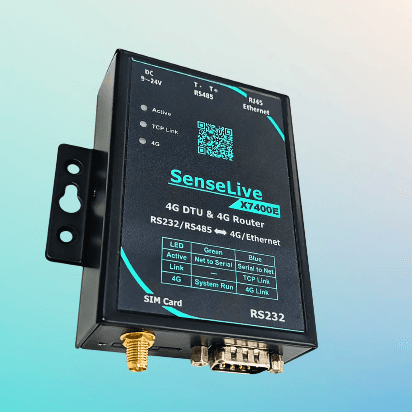

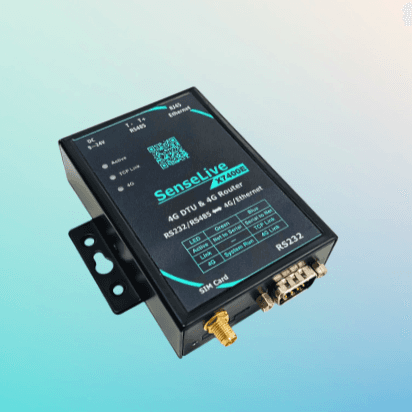

SenseLive X7400E
2G/3G/4G Serial Device Server
Short Description
SenseLive X7400D SenseLive X7400E Get access to your serial devices. Our 2G/3G/4G Serial Device Server connects RS232/RS485 equipment to cellular networks. Ideal for IIoT.
Key Features
- Multiple Communication Modes – TCP Server/Client, UDP, supports multiple client connections
- Flexible Serial Port – 1200–460800 bps, 5–8 data bits, multiple parity & stop-bit options, full flow control
- Versatile Data Routing – RS232/485 to 4G; X7400E adds Ethernet-to-4G and DHCP Server support
- Protocol Support – Transparent transmission, Modbus RTU ↔ TCP, MQTT (X7400E)
- Easy Configuration – AT commands, Web (X7400E), or SenseLive Device Configuration Tool software
- Custom Functions – Registry & heartbeat packet customization
- Remote Upgrade – Firmware updates via Web (X7400E) or server-side with SenseLive Configuration Tool
Product Overview
The X7400E is a cost-effective industrial 4G DTU/Router designed to provide reliable RS232/485-to-4G connectivity. Unlike basic DTUs, the X7400E also supports Ethernet-to-4G routing, Modbus TCP–RTU conversion, and MQTT for seamless integration with cloud platforms. With its wide operating temperature range (–45 °C to +85 °C), multi-operator SIM compatibility, and support for remote upgrades, the X7400E ensures dependable IoT data transmission in demanding environments. Flexible configuration options (serial, web UI, or LAN tool), plus optional local storage, heartbeat, and registry packets, further enhance reliability for industrial applications.
Complete Feature Set
Wide Network Support
Works with Indian Mobile, Unicom, and Telecom (2G/3G/4G, 7 modes).
Multiple Communication Modes
TCP Server/Client, UDP, supporting multiple client connections.
Flexible Serial Port
1200–460800 bps, 5–8 data bits, multiple parity & stop-bit options, full flow control.
Versatile Data Routing
RS232/485 to 4G; adds Ethernet-to-4G and DHCP Server support (X7400E).
Protocol Support
Transparent transmission, Modbus RTU ↔ TCP, MQTT (X7400E).
Easy Configuration
AT commands, Web UI, or SenseLive Device Configuration Tool software.
Custom Functions & Remote Upgrade
Registry & heartbeat packet customization; firmware updates via Web or SenseLive Configuration Tool.
