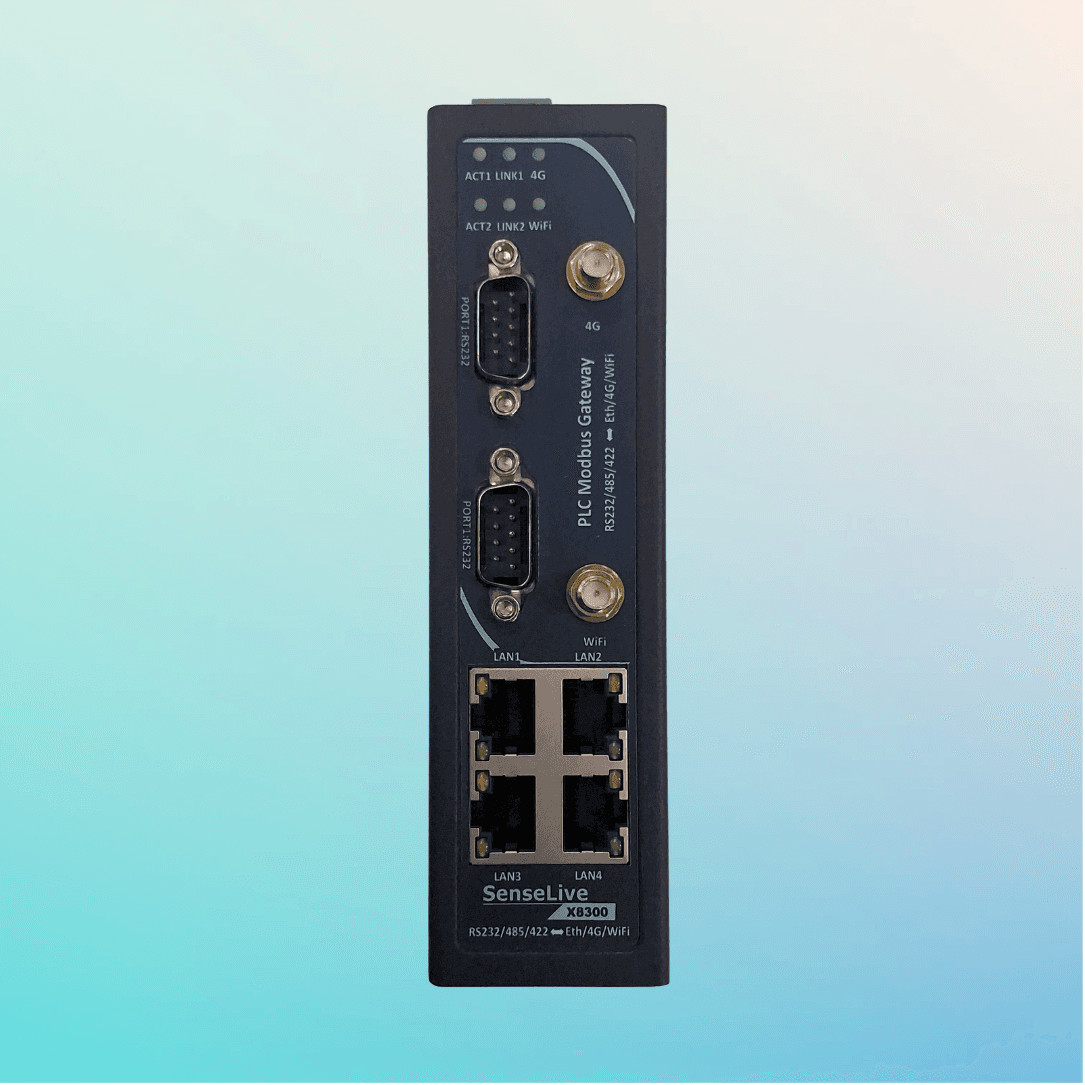

SenseLive X8300
Industrial Modbus-to-Ethernet IoT gateway
X8300 is a rugged industrial IoT gateway with Ethernet/Wi-Fi/4G/5G, dual RS232/485 ports, and support for Modbus, MQTT, BACnet, and JSON, offering transparent transmission, routing, and multi-host functions for reliable device-to-cloud connectivity.
Key Features
- Dual RS485 Ports
- Modbus TCP ↔ RTU
- Easy Configuration: VirCOM, Web, AT commands
- Supports multiple hosts and storage modes
- Pre-configured table (ZLMB) mode
- Custom heartbeat & registration package functions
- Built-in serial server with Modbus gateway
- WiFi/Ethernet/4G connectivity
Product Overview
X8300 is a rugged industrial IoT gateway with Ethernet/Wi-Fi/4G/5G, dual RS232/485 ports, and support for Modbus, MQTT, BACnet, and JSON, offering transparent transmission, routing, and multi-host functions for reliable device-to-cloud connectivity.
Key Features
Multi-Network Access
Supports Ethernet/WiFi/4G (CAT1/Full Netcom)/5G RedCap multi-network access.
Server & Connections
TCP Server/Client, UDP, UDP multicast, up to 30 TCP Server and 7 TCP Client connections.

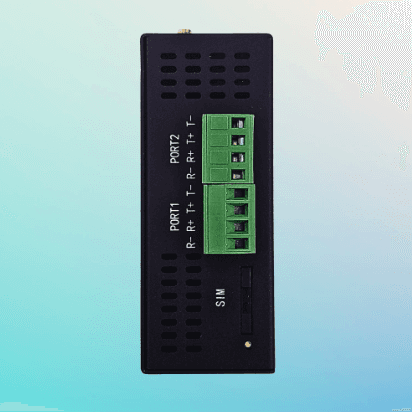

Flexible Serial Ports
1200–460800 baud, 5–8 data bits, various parity, 1–2 stop bits, independent dual ports.
RS232/485/422 to TCP/IP
Supports port/IP mapping, virtual serial port, and routing mode.
Transparent Transmission
Supports Modbus RTU–TCP, MQTT, BACnet (-B model), RS485/645 to JSON.
Easy Device Configuration
Web browser, AT command, Windows tool (ZLVircom), DLL dev library.
Industrial Design
9–24V wide voltage, terminal block power, shell ground wire, link/act/4G/WiFi indicators.
Advanced Functions
Multi-host support, HTTP POST/GET, NTP time sync, custom heartbeat & registration packets.
