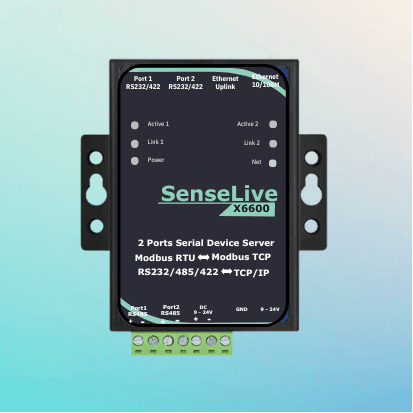

SenseLive X6600
2 Port Isolated Device Server Modbus RTU to Modbus TCP
X6600 is an industrial RS485 serial server and IoT gateway with optocoupler isolation for interference protection. It features dual RS485 ports, Ethernet connectivity, 9–24V terminal power, and multiple installation options. Supports shared or dedicated IPs, 2 stop bits, 7-bit data, and baud rates up to 921.6 Kbps. Provides TCP/IP to RS485 conversion, virtual serial ports, Modbus RTU to TCP, MQTT, and DLT-645 to JSON conversion with scheduled uploads for reliable industrial data communication.
Key Features
- Dual RS485 Ports
- Modbus TCP ↔ RTU
- MQTT & JSON Gateway
- 10/100M Ethernet with 2KV surge protection
- DIN-Rail or Multi-mount
- Compact & Rugged (88×62×33 mm)
- Wide Operating Range: -40°C to +85°C, 95% RH
- Flexible Power: 9–24V DC
- Multi-mode: TCP Server/Client, UDP, Multicast
- Easy Configuration: VirCOM, Web, AT commands
Product Overview
The SenseLive X6600 is an industrial RS485 serial server/IoT gateway with dual RS485 ports and Ethernet connectivity. It supports Modbus RTU ↔ TCP, MQTT, and DLT-645-to-JSON conversion, offering reliable, interference-free communication for industrial automation and IoT applications.
Complete Feature Set
Dual RS232 & RS422/485 Ports
Two RS232 and two RS422/485 ports enable full-duplex communication via a single network cable.
Ethernet Connectivity
RJ45 and green terminal ports with two 10/100M Ethernet interfaces and 2 KV surge protection.
Flexible Power
Supports wide voltage input via terminal or 5.5mm power socket for versatile deployment.
Multi-Protocol Support
Supports Modbus TCP ↔ RTU, TCP/IP, UDP, HTTP, DHCP, and DNS protocols for versatile communication.
Easy Configuration
Configure via VirCOM software, device management library, or Web UI for quick setup and monitoring.
Work Modes
Operates in TCP Server, TCP Client, or UDP modes for flexible network deployment.
Compact & Rugged
Small form factor (9.4 × 6.5 × 2.5 cm) with DIN-Rail or multi-mount options for industrial installations.
Lightning Protection
Built-in surge and lightning protection for RS232/485 ensures safe and reliable operation.
