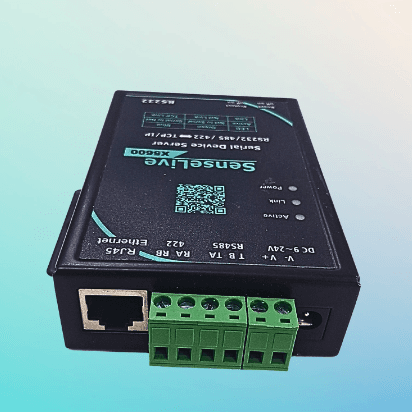

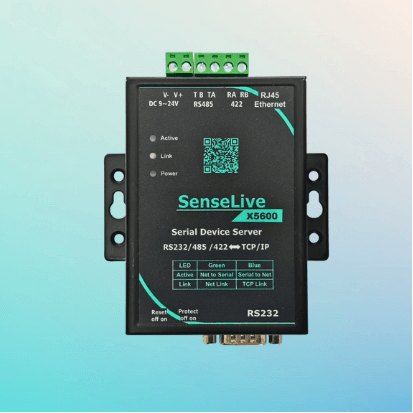

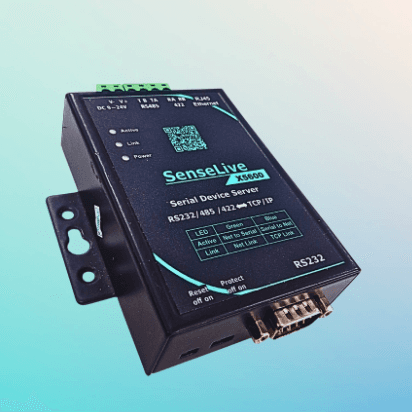

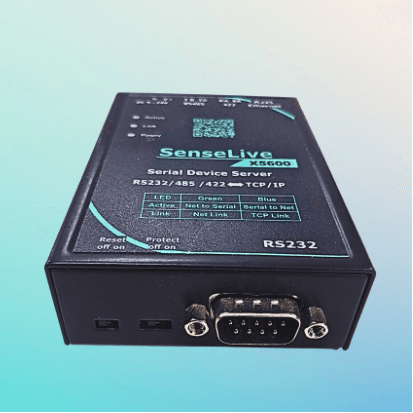

SenseLive X5600
RS232/485/422 To TCP/IP Converter
The X5600 is a high-performance serial device server that ensures fast and reliable RS232/485/422 to TCP/IP communication, with full duplex, surge protection, and support for modern networking features like DHCP, DNS, and virtual serial ports.
Key Features
- Dual RS485/422 Ports
- Modbus TCP ↔ RTU
- MQTT & JSON Gateway
- 10/100M Ethernet with 2KV surge protection
- DIN-Rail or Multi-mount
- Compact & Rugged (88×62×33 mm)
- Wide Operating Range: -40°C to +85°C, 95% RH
- Flexible Power: 9–24V DC
- Multi-mode: TCP Server/Client, UDP, Multicast
- Easy Configuration: VirCOM, Web, AT commands
Product Overview
The X5600 is an industrial serial device server that provides seamless communication between RS232/485/422 and TCP/IP networks. It supports full-duplex, simultaneous RS232 and RS485/422 operation, built-in lightning protection, and modern networking features like DHCP, DNS, and virtual serial ports for easy integration with existing systems.
Complete Feature Set
Full Duplex
High-speed serial-to-Ethernet conversion with no data loss for uninterrupted communication.
Cost-Effective
Reliable and affordable industrial solution for networking legacy serial devices.
Multi-Protocol Support
Supports TCP Server/Client, UDP, Multicast, Modbus RTU/TCP, MQTT, JSON, and HTTP for versatile communication.
Flexible Serial
Baud rate: 1200–115200 bps, data bits 5–9, with flow control and advanced 9th-bit communication.
Lightning Protection
Built-in surge protection for RS485/422 interfaces ensures device safety.
Easy Management
Configure via VirCOM tool, Windows DLL support, or built-in Web interface for quick setup and maintenance.
Auto-Reconnect
Automatically restores the network link after connection interruptions.
High Capacity
Supports up to 100 TCP connections and 8 client IPs for large-scale industrial networks.
