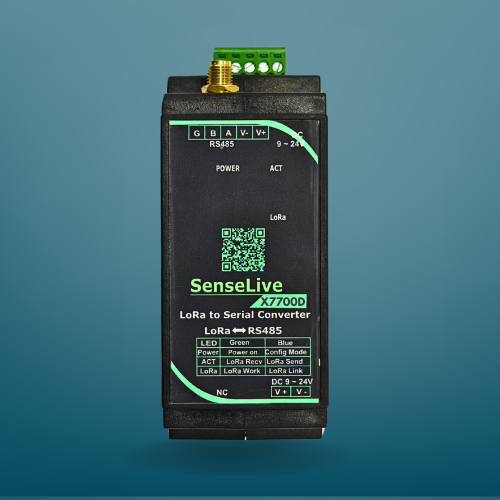

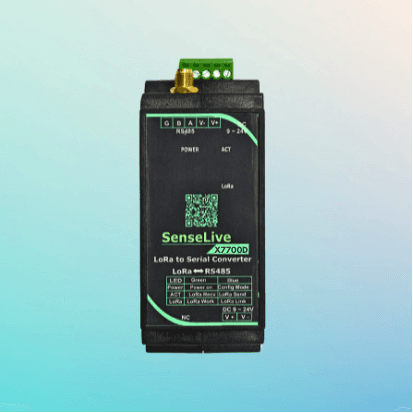

SenseLive X7700D
DIN-Rail LoRa Device
Short Description
SenseLive X7700D is a high-performance LoRa-based DIN-rail device designed for industrial environments requiring long-range, low-power wireless communication. It supports RS485/Modbus RTU, allowing seamless integration with SCADA, BMS, and remote monitoring applications.
Key Features
- DIN-Rail Mounting for industrial installation
- RS485 & Modbus RTU support for wired connectivity
- Long-Range LoRa Transmission for up to 15 km (line of sight)
- Secure & Encrypted Communication ensuring data integrity
- Cloud Integration & Remote Management capabilities
Product Overview
The SenseLive X7700 is a DIN-rail mounted LoRa transceiver designed to connect RS-485 serial devices over long-range LoRa networks. Ideal for industrial IoT applications, it supports transparent Modbus RTU communication with up to 8 km line-of-sight range, powered by the Semtech SX1287 chip. With AES-128 encryption, wide temperature tolerance (-40°C to +85°C), and robust build quality, the X7700 ensures secure and reliable data transmission in harsh industrial environments.
key Feature
DIN-Rail Mounting
Easy installation in industrial control cabinets and panels.
RS485 & Modbus RTU Support
Seamless integration with existing industrial equipment and SCADA systems.
Long-Range LoRa Transmission
Up to 15 km line-of-sight range for remote monitoring applications.
Secure & Encrypted Communication
AES-128 encryption ensures data integrity and security.
Cloud Integration
Ready for integration with SenseLive Cloud and third-party platforms.
Related Products

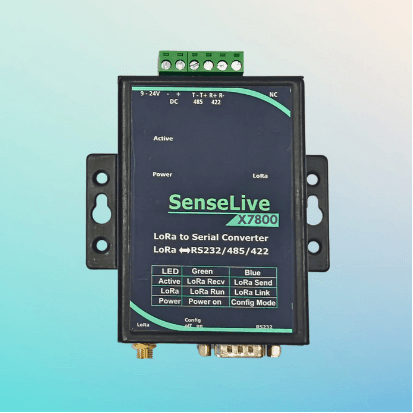

SenseLive X7800
Wall-Mounted LoRa Device with RS232 Features
- Wall Mounted & Compact Design
- Dual RS323 & RS485 Support
- LoRaWAN & private LoRa Protocol
- Low Power Consumption

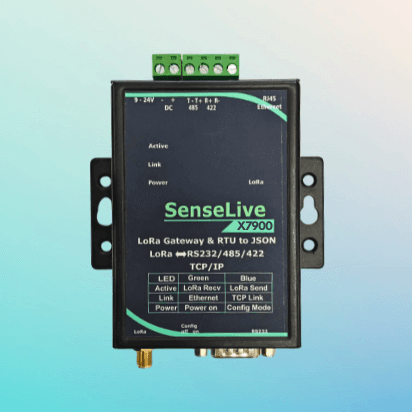

SenseLive X7900
